125M ~ 2.5G Optical Media Converter , 2 SFP Port 2U Rackmount Chassis
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Transmission Rate: | 125Mbps~2.5Gbps | Interface Type:: | SFP TO SFP |
|---|---|---|---|
| Dimension: | 112.8mm (W)×77.2mm(D)×23 Mm(H) (Card) | Power Supply: | External Power Supply |
| Feature1: | Supporting SFP To SFP | Feature2: | Supporting Fast Ethernet |
| Highlight: | optical media converter,sm to mm fiber media converter |
||

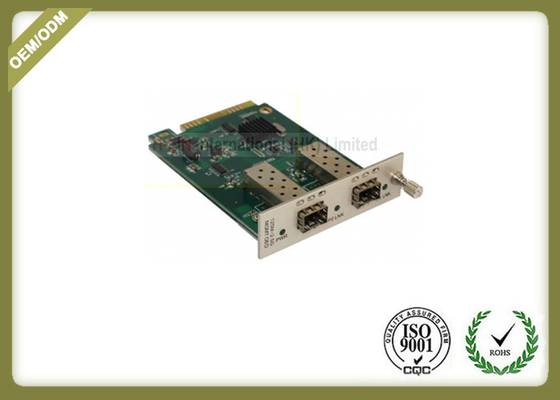

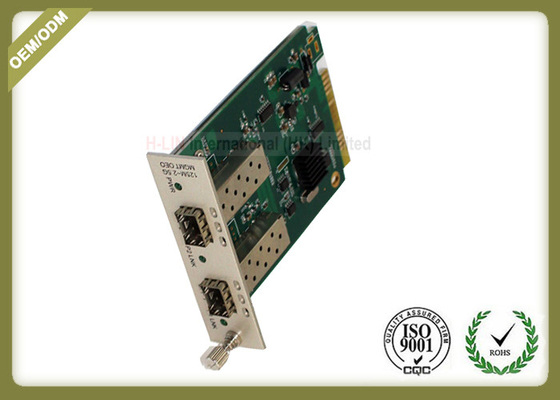

125M~2.5G OEO Converter Card type Supports modules from 100Mbit / s to 2.5Gb / s
Description:
16-slot multifunctional management system is a Ethernet and SDH transmission equipment,support mutiple services including managed media converter card, OEO Converter card, 1+1 protection switching card, CWDM/DWDM MUX/DEMUX Card, etc , supports protocols like SNMP, WEB, CONSOLE and TELNET , with a strong management function , and operate easily to meet different customer's requirement.
Key features:
- Supporting SFP to SFP
- Supporting Fast Ethernet, STS-3/STM-1, ESCON/SBCON, STS-12/STM-4, 1×Fiber Channel, Gigabit Ethernet, 2×Fiber Channel, STS-48/STM-16, 2.5 Infini Band,
- Transmission rate 125Mbps~2.5Gbps
- Short delay time when transparent transmission
- Supporting Jumbo frame transmission
- Supporting DMI(Diagnostic Monitoring Interface) function of optical transceivers
- Supporting 850nm, 1310nm, 1550nm and DWDM/CWDM wavelength ruled by ITUT
- With powerful network management function, supporting WEB and SNMP
- Supporting hot plug
- Easy installation with complete LED indicators for working situation
- Supporting 2U chassis (16 slots) and standalone use
Technical Specifications:
| Interface Type: | SFP to SFP |
| Power Dissipation: | <3W |
| Operating Temperature: | 0 ~ 50 ℃ |
| Humidity: | 5%~90% |
| Storage Temperature: | -40`~70 |
| Dimension: | 112.8mm (W)×77.2mm(D)×23 mm(H) (Card) |
Application
Standard 2U Slot rack mount chassis,support varous Card type converter
All of H-LIN's transceiver modules are open sourced, can be coded to be fully compatible with major brands' products and devices, such as Intel, Dell, Cisco, Finisar, Arista, HP, Mellanox, Juniper, HUAWEI, H3C, etc.
For other brands' devices, please specify when ordering so that we can write corresponding codes for your easy application.
