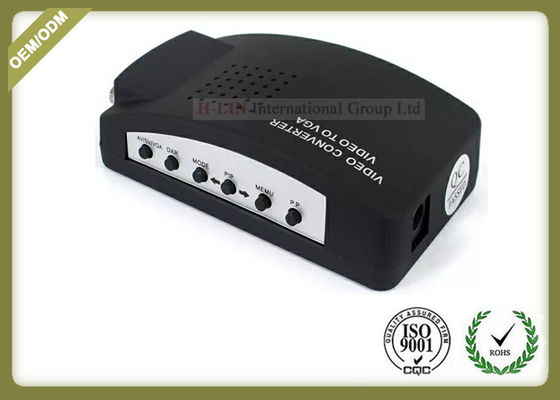

AV TO VGA Fiber Optic Media Converter Plug And Play Video To VGA Converter

INTRODCTION

Video to VGA converter. Use Display Device instead of monitor,consumedly save the cost of monitoring.It can change the signals of s terminator of video into VGA signals line-by-line. Let your monitor change into flicker free display. Flicker free display is good display. It also can be connected to VCD/DVD/Webcam / set-top box etc. And make your monitor be like digital TV.

FEATURES

1. 1 Input: 1 X VGA;

2. 3 Loop-through Outputs: 1 X VGA, 1 X Composite Video, 1 X S-video;

3. PC VGA resolution: 640X480 (60/72/75/85Hz), 800X600 (60/75Hz), 1024X768 (60/75Hz).

Higher resolutions are supported, while the lower the resolution is, the better the picture effect will be.

4. On Screen Display (OSD);

5. Plug and Play. No software driver is needed;

6. Both PAL / NTSC are compatible;

7. HSIZE, VSIZE, BRIGHTNESS, CONTRAST, HUE, SATURATION,SHARPNESS and OSD -BACKGROUND color are adjustable.

8. It is powered by USB port of PC host. When the USB port of the PC host fails to function,a DC 5V external power supply is optional.

9. Portable Size: 98mm(L)x58mm(W)x32mm(H).

10. Converts VGA signals to S-Video and Composite for TV output

11. Powered by USB port, no bulky AC adapter to carry around

12. Perfect for presentations and home entertainment (watch movies on TV!)

13. Supports NTSC, PAL TV modes

14. Maximum 24-bit true color 1280*1024px @ 60Hz resolution

15. Resolution of VGA signals:640x480@60/72/75/85Hz,800x600@60/75Hz,1024x768@60/75Hz, 1280x1024@60Hz

16. Output VGA/Video/S-Video at the same time

17. USB power cable, VGA connection cable, composite TV cable and S-Video cable included

SPECIFICATION

1. DC 5V: A/V adaptor
2. Infrared remote receiver module:According to customers needs
3. Video IN:Connect to Video Camera /VCD/DVD/ Game Console
4. S video IN:Connect to Video Camera /VCD/DVD/ Game Console
5. VGA Out: Connect to monitor
6. VGA In :Connect to AGP(Accelerated Graphics Port)

PACKAGE INCLUDE

1. Host of converter :one
2. Operating instruction of converter :one
3. A/C adaptor :one
4. S terminator line :one
5. Video cable :one
6. VGA signal wire:one
